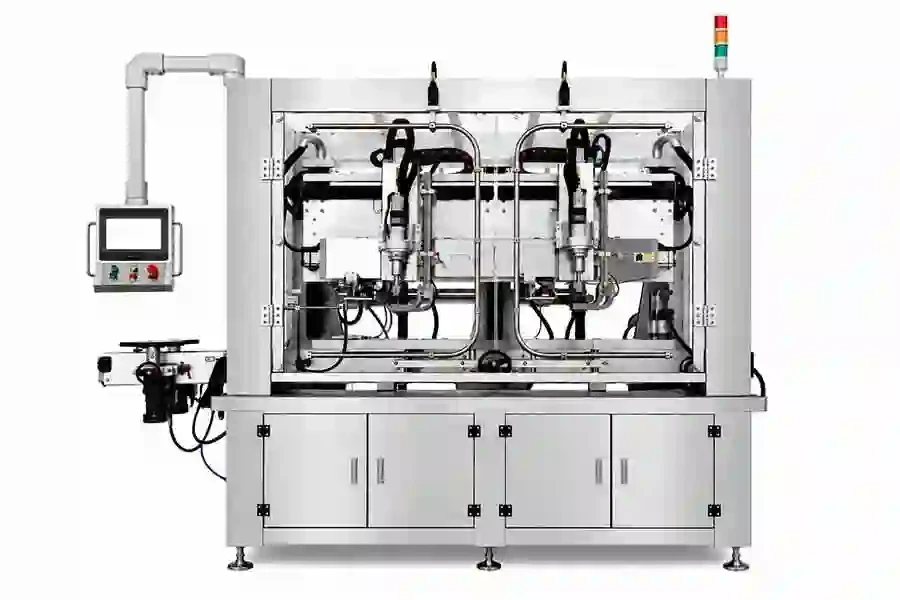

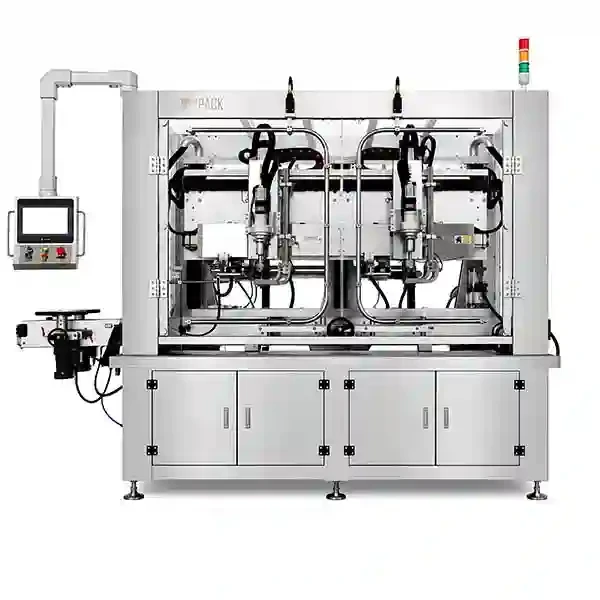

NP-TC Automtic Tracking Capping Machine

The Automatic Tracking Capping Machine represents a technological breakthrough for the packaging industry, perfectly complementing the automatic tracking filling machine to create a comprehensive packaging line solution. Featuring an advanced motion controller, all of its operations are powered by servo motors, making it a near-fully intelligent piece of equipment. This innovation ensures unparalleled precision and efficiency, marking a significant step forward in automated packaging processes

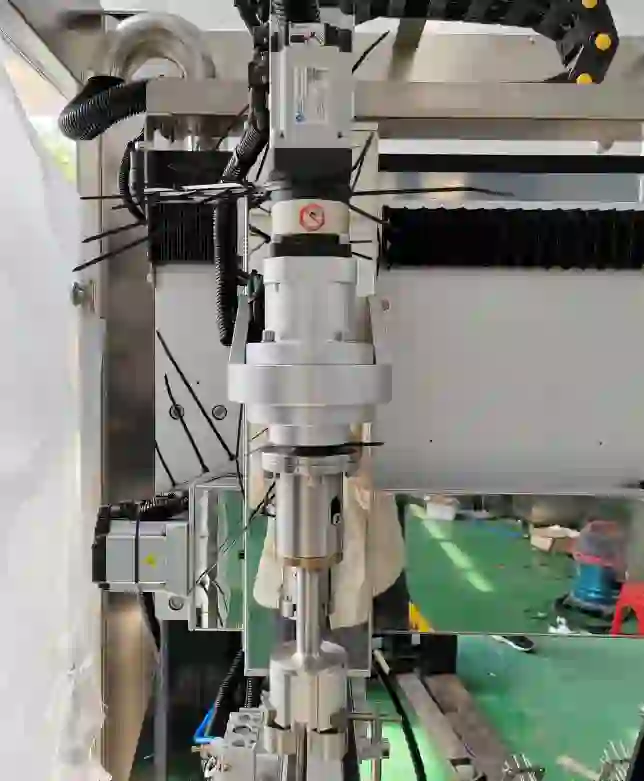

The integration of a servo system with a torque module for controlling the capping head allows for the precise setting of cap tightness, offering customizable capping solutions.

Constructed entirely from 304 stainless steel, ensuring durability, hygiene, and resistance to corrosion, making it ideal for extensive industrial use.

The cap feeding system can be customized to accommodate different cap types, utilizing either a Cap elevator or a vibrator, enhancing its versatility in handling various cap styles.

Adjustments for different sizes of bottles and caps can be made quickly and easily without the need for changing parts, with the exception of the capping head, streamlining the changeover process.

The innovative design ensures that liquids remain in the bottle without spillage, as bottles do not need to stop for capping. The capping heads move in synchronization with the bottles, providing a seamless capping process.

Designed for wide application, the machine allows for fast and easy switching between different caps and bottles, highlighting its flexibility and efficiency in diverse packaging environments.

Features a high success rate in cap loading with its pick and place capping mechanism, ensuring reliable and consistent capping operations.

Ensures perfect capping without damaging the bottle or cap, maintaining the integrity of both the product and its packaging, thus ensuring a high-quality presentation and product safety.

Technical Parameters

Tracking Capping Machine Workflow

Automatic tracking capping machine is designed to ensure secure sealing, product safety, and packaging integrity through a streamlined process:

1.Bottle Positioning
Bottles are precisely aligned before capping to ensure stable operation.

2.Cap Feeding
Automatic cap sorting and feeding systems provide a continuous, jam-free cap supply.

3.Cap Placement & Tightening
Servo control accurately positions caps and applies consistent torque for reliable sealing, with quick adjustment for different cap types.

4.Quality Inspection
Automatic inspection verifies correct cap application before bottles move to the next stage.

This efficient workflow defines the core advantage of modern automatic tracking capping systems.

1. How Is Accurate Cap Placement Ensured on Bottles?

Precise Cap Alignment

To ensure every cap fits tightly on the bottle mouth, automatic tracking capping machines use advanced technologies. At the core is a servo motor-driven motion control system, which synchronizes the movements of bottles and capping heads according to different bottle and cap types. This allows the system to adjust cap positions in real time, reducing misalignment risks—especially important for varied cap designs.

Additionally, the modular design supports flexible parameter settings, allowing operators to fine-tune for different product specifications. With these technologies, high-speed, reliable automatic capping is achieved without extra positioning devices, meeting modern production lines’ demands for both speed and precision.

2. How do Cap Feeding Mechanisms Work in Automated Traking Capping Systems?

Cap Feeding System Operation

Cap feeding mechanisms play a crucial role in automatic tracking capping systems. Caps are separated, aligned, and delivered to the designated capping position via specialized elevators or vibratory feeders. The fully automated process ensures caps reach the capping head smoothly, minimizing jams and production interruptions.

• Vibratory Feeders: Ideal for small, lightweight caps. Precise vibrations automatically orient and align mixed caps.
• Cap Elevators: Handle larger or specially shaped caps, lifting them steadily onto the cap supply track for continuous feeding.

This efficient sorting and delivery method allows automated lines to operate smoothly while enabling quick changeovers between different cap types without stopping the line.
