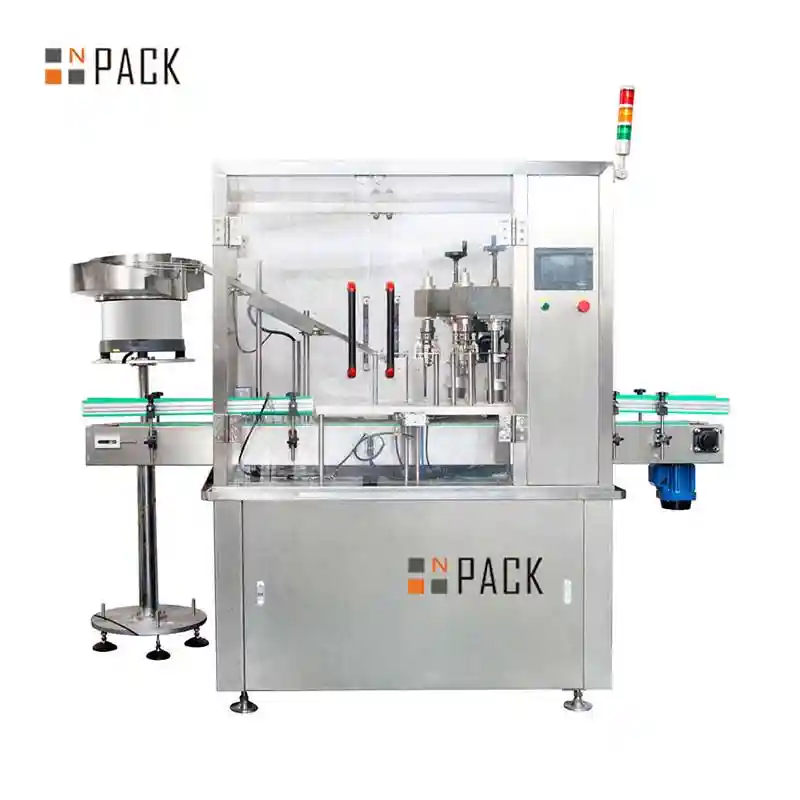

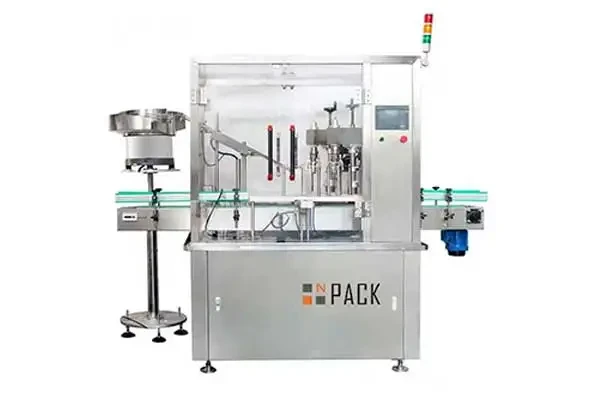

The ROPP Capping Machine is a high-speed automatic system designed for sealing roll-on pilfer-proof (ROPP) and aluminum caps on wine, olive oil, spirits, and beverage bottles. Built with SUS304 stainless steel, it ensures durability, hygiene, and smooth operation across a wide range of bottle shapes and sizes.
Equipped with multi-head rotary capping technology, PLC control, and a user-friendly touch screen, the machine delivers secure, precise, and consistent sealing at speeds of 1800–2000 bottles per hour. Features such as overload protection, automatic cap feeding, and a safety gate system enhance both reliability and operator safety. With customizable options for bottle height, diameter, and cap size, the ROPP capping machine integrates seamlessly into modern production lines.
Ropp Capper Machine Main Features
1.High-Speed Integrated ROPP Capping
Combines automatic lid placement, upper cover fastening, and ropp capping in one machine, delivering fast, efficient, and consistent production.
2.Flexible Bottle Handling
Supports round, square, and irregular bottle shapes, ensuring versatility for different packaging needs.
3.Quick Changeover
Adjustable lid and bottle settings allow fast switching between different specifications, reducing downtime and simplifying operation.
4.Durable and Reliable Components
Equipped with globally recognized electrical and pneumatic parts, guaranteeing low failure rates and long service life.
5.Compact and Stable Design
Rational layout ensures smooth operation, precise capping, and reliable performance over extended production periods.
6.Adjustable Turntable & Cap Speed
Buffer turntable and customizable cover application speed improve handling stability and capping accuracy.
7.Automation for Efficiency
Automatic start/stop function, high automation level, and no need for spare parts when changing bottles or lids ensure seamless production.
8.Broad Industry Applications
Suitable for food, pharmaceuticals, daily chemicals, cosmetics, pesticides, and more, providing a versatile solution for multiple sectors.
Technical Parameters
| 1. | Model | NP-RC |
| 2. | Capacity | 1800-2000 b/h(Customized capacity based on demand) |
| 3. | Suitable cap | Aluminum Cap |
| 4. | Yield of cap | 99% |
| 5. | Dimension | 2000x1000x1500mm |
| 6. | Power consumption | 0.8KW |
| 7. | Weight(kg) | 600kgs |
