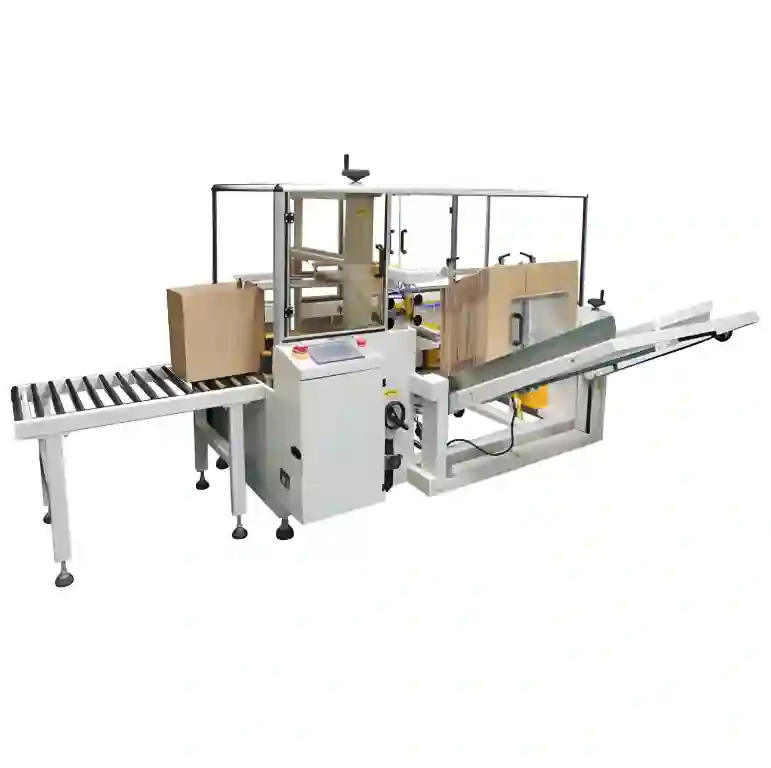

Automatic Carton Box Erector

Carton Box Erector—also known as “box makers”—utilize a control system combining a PLC with a Human-Machine Interface (HMI). During the material conveying process, the machine automatically executes the entire sequence of operations: box pickup, forming, bottom flap folding, and sealing; throughout this process, it demonstrates exceptional precision and reliability. The machine features extremely robust sealing performance, effectively eliminating common issues such as tape misalignment or slippage. Furthermore, this equipment can be seamlessly integrated with our company’s automatic case sealers, case packers, weighing systems, labeling machines, printers, strapping machines, and conveyor systems.

Main Feature

1.The carton box erector machine automatically performs carton erecting, forming, bottom folding, and sealing, while simultaneously applying bottom tape, significantly reducing labor and time costs.

2.Suitable for a wide range of carton sizes, with quick and easy adjustment for different dimensions.

3.Ensures stable and reliable operation, delivering strong and visually appealing packaging results.

4.Equipped with high-end configurations, with key components sourced from internationally recognized brands.

5.Features a simple structure, making operation and maintenance easy and cost-effective.

6.Includes an automatic correction system to ensure precise and consistent carton right angles.

Technical Parameters

What Types and Shapes of Cartons Can Carton Box Erector Handle?

Automatic carton box erector are built to accommodate a wide range of carton types and shapes, adapting easily to various packaging needs. Most machines can handle both rectangular and square cartons, providing flexibility for different product dimensions. Their designs typically support quick adjustments, allowing for fast changeovers between carton sizes and shapes without extensive downtime.

Whether your packaging requirements involve small boxes for electronics or larger containers for bulk items, modern carton erecting machines ensure consistent forming and reliable performance across diverse box styles. This versatility makes them ideal for use in dynamic production environments where packaging demands frequently change.

How Do Suction Cup Systems Work in Carton Box Erector Machines?

Suction Cup System: Working Principle

The carton box erector uses a precision-engineered suction cup system to accurately pick and handle flat carton blanks. The operation is as follows:

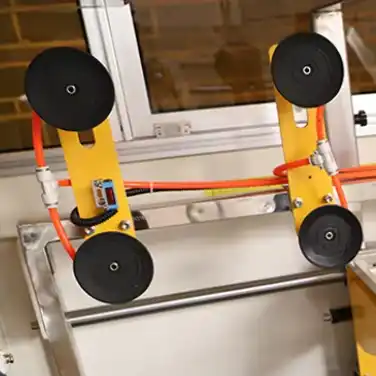

Suction cups, typically made from durable rubber or silicone materials, are mounted on adjustable mechanical arms connected to a vacuum generation system.

Once activated, the vacuum creates negative pressure, allowing the suction cups to gently grip the surface of each flat carton blank.

The system then lifts a single blank from the stack and accurately transfers it to the forming position for opening and erection.

This automated pick-and-place process ensures that cartons are separated individually and positioned correctly, effectively reducing the risk of misfeeds and machine jams. Thanks to its stable vacuum control and precise calibration, the system supports high-speed, continuous operation, even when handling lightweight or delicate cardboard materials. This technology plays a key role in achieving consistent carton forming performance in modern high-efficiency packaging lines.

What Features Are Available in Modern Case Erectors to Prevent Issues Like Machine Jams or Tape Breakage?

Advanced Functions to Reduce Jams and Tape Breakage

Modern automatic carton erectors are equipped with a range of intelligent technologies designed to minimize disruptions such as carton jams and tape failures. Many high-end models—particularly those integrated with Siemens PLC control systems—use sensor-based detection to continuously monitor carton flow and positioning, ensuring smooth and accurate operation throughout the process.

To further improve stability and reliability, these machines typically include the following features:

Jam-Prevention Technology

Advanced detection and alignment systems identify potential misfeeds in advance, preventing blockages before they occur. When abnormalities are detected, the system can automatically stop operation or initiate a clearing process to avoid further issues.

Tape Monitoring and Alarm System

Built-in sensors alert operators immediately when sealing tape is low, broken, or improperly applied. This prevents continued operation under faulty conditions and ensures consistent carton sealing quality.

Automatic Reset and Recovery

Some systems are capable of automatically recovering from minor faults, reducing the need for manual intervention and minimizing production downtime.

Together, these intelligent functions ensure stable performance, higher uptime, and more efficient production, allowing operators to focus on overall workflow optimization rather than frequent troubleshooting.
