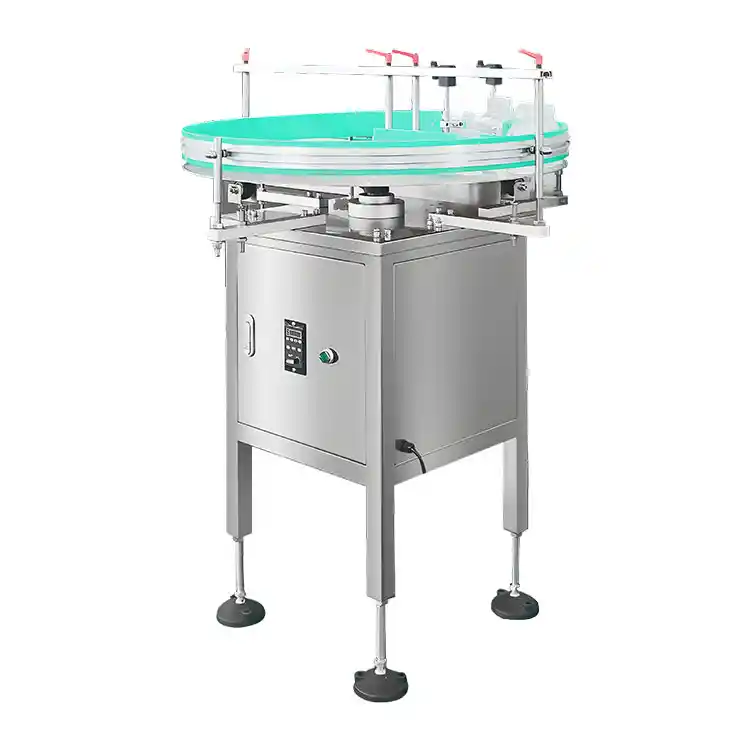

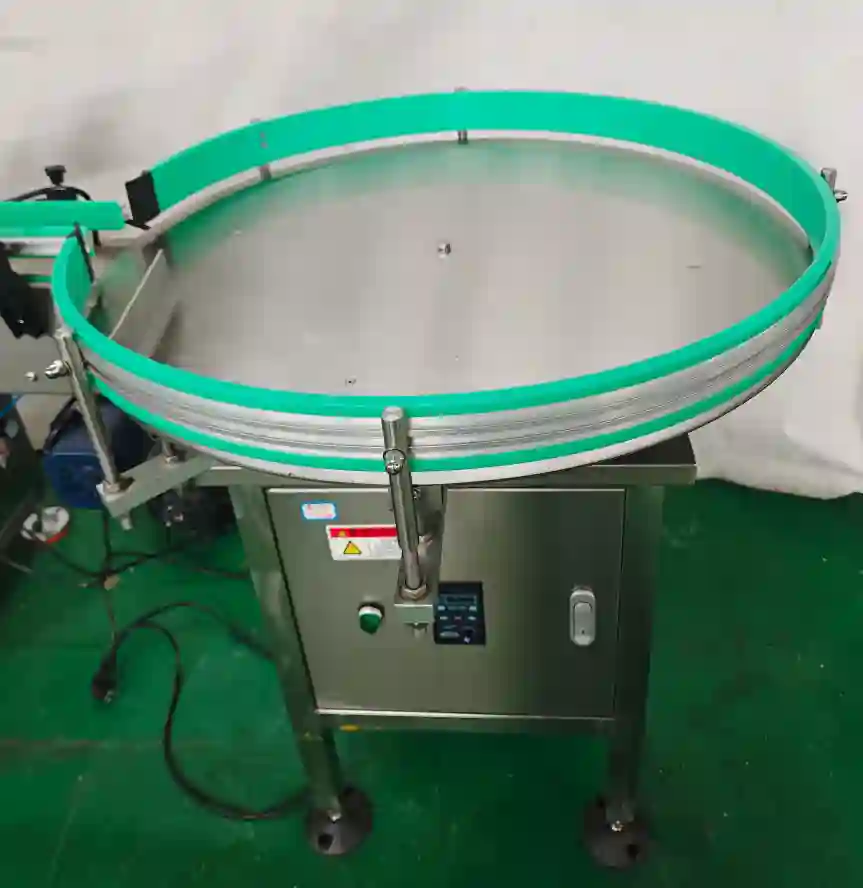

The bottle turntable typically refers to a rotating circular worktable or platform whose core function is to change the orientation or position of containers, or to perform specific packaging processes dynamically.
On filling production lines, the application of rotary turntables can significantly improve production efficiency. For example, a feeding turntable assists operators in conveying round containers to the filling machine, creating sufficient reserves to ensure the filling machine can operate at full capacity. A stacking turntable helps improve packaging efficiency when loading finished products into shipping cartons. These turntables are all made of robust and durable 304 stainless steel, ensuring their durability even in harsh production environments. Furthermore, you can customize the turntable configuration by selecting bottle guide rails and crescent-shaped unloading platforms to perfectly suit specific application needs.
Main Features
1. Automatic Bottle Arrangement
The rotary worktable automatically unscrambles disordered containers and arranges them in order, ensuring smooth feeding to the production line.
2. Adjustable Speed Control
Equipped with a frequency converter, allowing flexible speed adjustment to match different production capacities.
3. Stable Rotary Structure
The gear-driven rotating table uses tangential force to guide bottles smoothly into the conveyor, making it easy to integrate with various production lines.
4. Improve Efficiency & Reduce Labor
Automatically replaces manual bottle sorting, reducing labor costs and improving production efficiency.
5. Suitable for Various Bottles
Simple structure and easy operation. No change parts required, suitable for different bottle shapes and heights.
6.Food Grade Material
Made of high-quality SUS304 stainless steel, meeting food-grade standards with strong corrosion resistance and long service life.
Technical Parameters
| Model | NP-T |
| Speed | 40-70 Depending on Bottles |
| Air Pressure | 0.7MPa |
| Air Consumption | 0.4M3/min |
| Applied bottles | Samples for confirmation |
| Power | 4.5KW |
| Weight | 1.8T |
Rotary Bottle Turntable Advantages
1. Improve Production Efficiency
Rotary turntables help automate bottle handling and improve the efficiency of filling lines. Bottles are conveyed smoothly and aligned in order, ensuring that filling machines, capping machines, and labeling machines operate at their maximum efficiency.
2. Ensure Accurate Bottle Positioning
For equipment such as multi-head piston fillers, bottles must be accurately positioned to ensure proper filling. The rotary turntable helps arrange bottles in sequence, preventing missed filling or production interruptions.
3. Reduce Manual Labor
Without a rotary turntable, operators must continuously load and arrange bottles on the conveyor belt. With a loading turntable, a single operator can place multiple containers at once, allowing the system to automatically feed bottles into the conveyor.
4. Maintain Continuous Production
Accumulating rotary turntables collect bottles after processing, preventing production delays. Bottles can be easily removed and packed while the line continues running smoothly.
5. Protect Bottles from Damage
The rotating table prevents bottles from piling up, falling, or tipping over, which is especially important when handling fragile containers such as glass bottles.
6. High Processing Capacity
Equipped with stainless steel guide rails and a variable-speed motor, the turntable can process up to 150 containers per minute.
7. Multiple Size Options
Two standard rotary table diameters are available:
- 800 mm rotary table
- 1200 mm rotary table
Working Principle of Industrial Rotary Bottle Turntable
1. Bottle Feeding Function
The motor drives the rotary table to rotate. Bottles placed on the turntable are automatically arranged by the bottle guiding device and then smoothly transferred to the conveyor belt of the production line.
2. Bottle Collection Function
During the collection process, the rotating table gathers bottles from the conveyor bridge and moves them to the bottle storage area. Guide rods help direct the bottles toward the center for easy collection and packaging.
3. Adjustable Rotation Speed
The rotation speed of the turntable can be easily adjusted using the control knob located below the machine, allowing it to match different production speeds.
