With a wide variety of juice products on the market, including 100% pure juice, juice drinks, non-concentrated juice, concentrated juice, and juice with pulp, manufacturers are facing increasing challenges in the filling and packaging process, such as inaccurate filling volumes, inconsistent liquid levels, and pulp particles blocking filling valves.
Therefore, choosing a suitable juice filling machine can effectively solve these problems, improve production efficiency, and enhance brand competitiveness. Npack is an experienced manufacturer of filling machines, capping machines, and labeling machines, providing one-stop juice filling and packaging solutions for customers in the beverage industry.
Based on our previous production experience, we will provide a detailed introduction to juice filler machines and production lines, offering practical suggestions to help you select the right equipment for your production needs.
What is a juice filling machine?
Juice filling machines efficiently and accurately fill juice into various containers (bottles, jars, bags, etc.), achieving high-precision filling and consistent liquid levels while greatly improving production efficiency. They are indispensable packaging equipment for modern beverage production line.

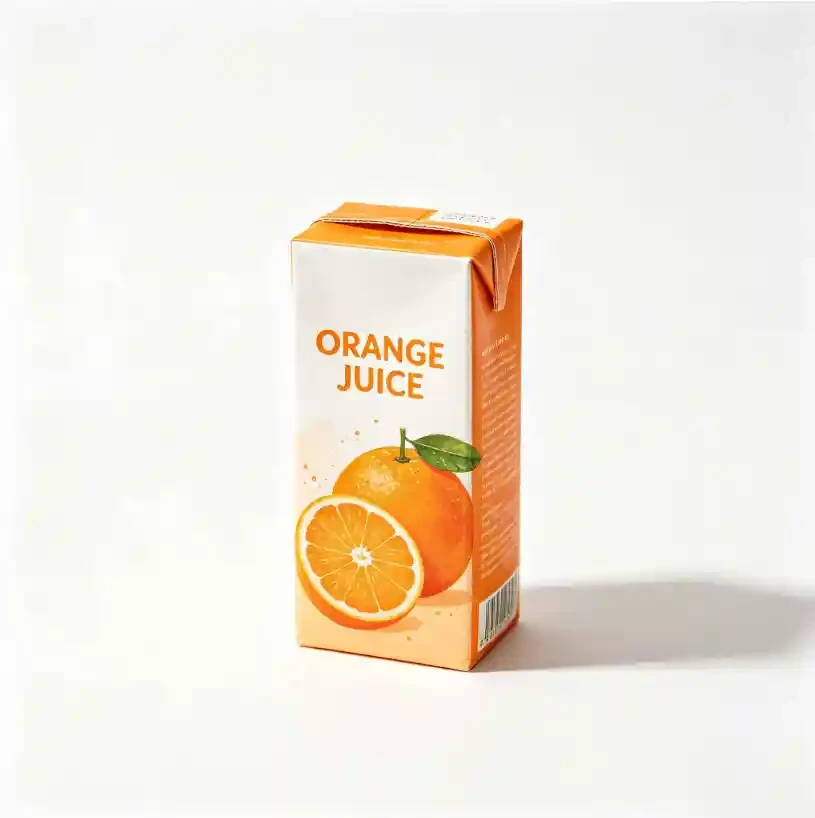

What are the different types of juice packaging?

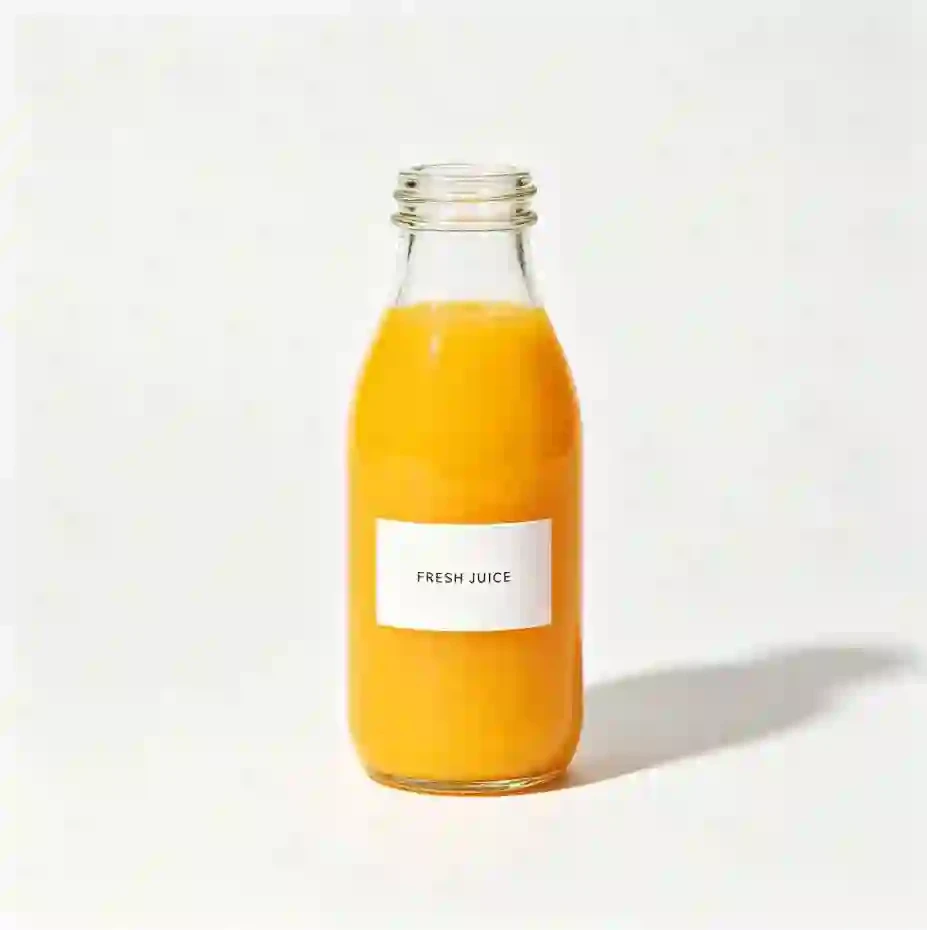

- Glass juice bottle
- Pet juice bottle

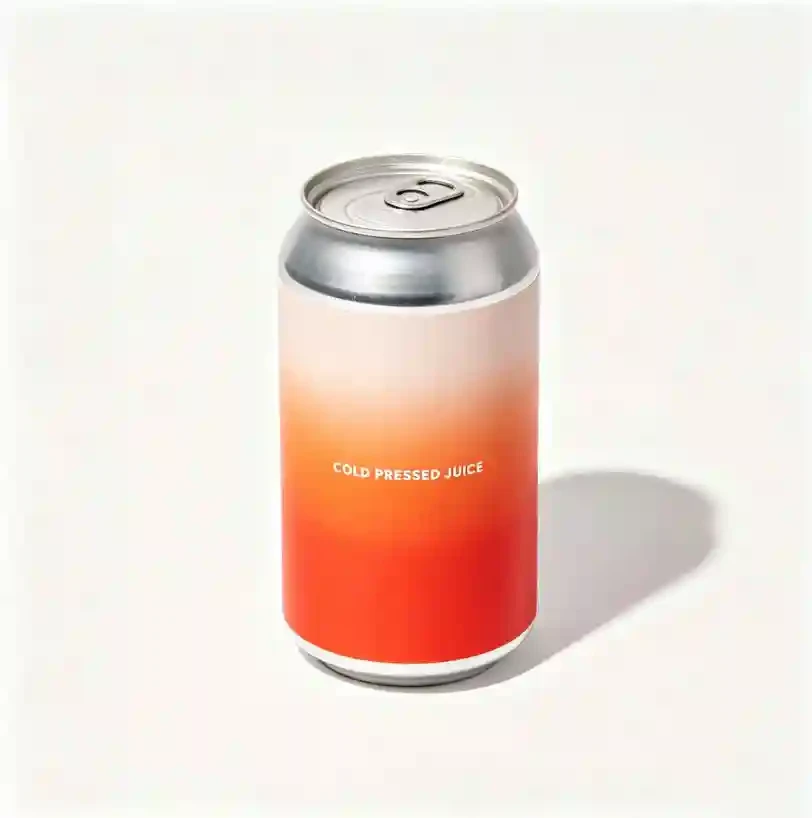

- Aluminum Juice Bottles
- Juice pouch
What are the popular juice filling machines on the market?
The mainstream juice filler machines available on the market mainly include semi-automatic piston filling machines, fully automatic piston filling machines, overflow filling machines, and rotary filling machines. Next, I will introduce these filling machines in detail.

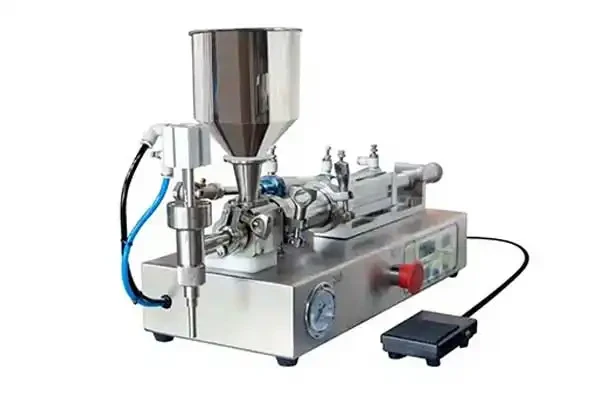

1.semi-automatci piston filling machine
The semi-automatic piston filler machine is one of the most widely used filling equipment for juice, beverages, and high-viscosity liquids. It is especially suitable for small-batch filling of juice and other liquid products. The maximum filling volume can reach 5L, and the filling speed can reach up to 30 bottles/min. With simple operation, low maintenance costs, and a compact footprint, it is an ideal solution for small-scale production.
2.Full Automatic Piston Filling Machine
Automatic Piston filling machines primarily use a pneumatic cylinder or servo motor to drive a piston in a reciprocating linear motion within the product cylinder, filling viscous liquids such as fruit juice containing pulp or small particles into containers (bottles, cans, jars, etc.). Equipped with a PLC control system and anti-drip filling nozzles, they provide high filling accuracy with a maximum production capacity of 7,200 bottles/hour. They are particularly suitable for medium- to high-volume filling of liquids containing pulp or particles.
3.Overflow Filling Machine
Unlike piston filling machines, overflow filling machines fill containers based on the liquid level rather than volume while simultaneously recirculating excess liquid and foam during the filling process. They are especially suitable for juices and other liquids without pulp or containing only very small pulp particles, ensuring a uniform liquid level in every bottle on the shelf. They are widely used in the beverage industry.
What are the main components of a juice filling machine?
juice filling machine consists of multiple components, including:
1. Hopper
The hopper is mainly made of 316 food-grade stainless steel and features heating, mixing, and heat preservation functions. It supports hot filling and helps extend the shelf life of juice products.
2. PLC Control System
The parameters can be adjusted through the touchscreen (HMI), and multiple recipes can be stored. The system monitors the machine status in real time, enables “no bottle, no filling”operation, and can be integrated with upstream and downstream equipment to achieve fully automated production lines.
3. Anti-Drip Filling Nozzles
The machine uses 316 stainless steel anti-drip filling nozzles to prevent dripping and stringing during the filling process, ensuring high filling accuracy.
4. Food-Grade PTFE Hoses
High-quality branded food-grade PTFE hoses are used to ensure a clean and hygienic filling process.
5. Conveyor System
The conveyor system is mainly used to transport containers (bottles, cans, jars) to the filling nozzles and rotary table.
Complete Juice Filling Production Line
The production efficiency of a single juice filling machine is limited. It is usually combined with other industrial packaging equipment, such as capping machines, labeling machines,and bottle washing machine，to achieve production automation and significantly improve production efficiency. The complete production line mainly includes:
1. Bottle Washing Machine
Uses water or ionized air technology to clean containers (bottles, jars, cans, etc.), preparing them for the next production process.
2. Filling Machine
Mainly uses overflow filling machines or piston filling machines to accurately fill juice into containers (bottles, jars, cans, etc.).
3. Capping Machine
Applies caps onto containers to achieve a sealed closure, helping extend the shelf life of juice products.
4. Labeling Machine
Automatically applies juice labels onto containers, displaying information about the juice company and products.
5. Rotary Bottle Turntable
Organizes containers in an orderly manner, mainly used for collecting and arranging containers.

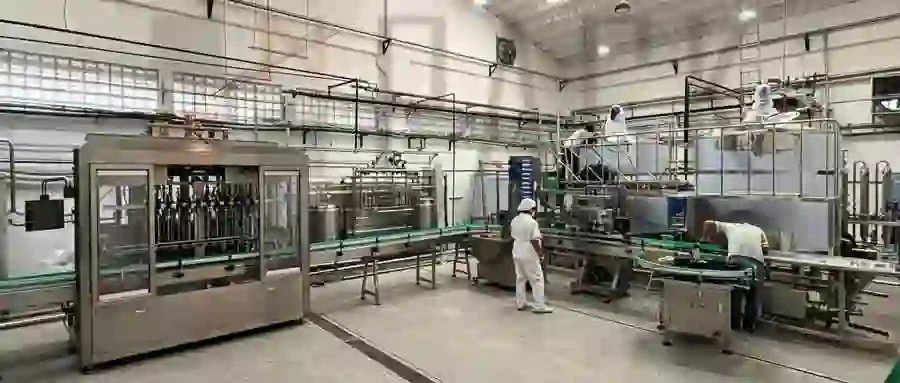

Customer Case Study – Automatic 12-Nozzle Juice Filling Machine in Guatemala
Project Background: In 2024, a client in Guatemala aimed to upgrade the juice bottling line at their existing facility and partnered with Npack to provide a professional filling solution.
Product: Juice
Filling Volume: 500ml–5L
Bottle Type: Round PET bottles
Packaging Solution: Based on the client’s filling volume, bottle specifications, and factory layout, Npack provided a 12-head juice filling production line. The system mainly consists of a bottle feeding table, a 12-head filling machine, a spindle capping machine, a cap sorter, and a bottle accumulation table.
Project Results: The factory upgrade was successfully completed, significantly improving juice production efficiency and meeting the requirements for market expansion.
How to Choose the Right Juice Filling Machine
When selecting the most suitable juice filling machine, consider the following key factors:
1. Juice Type
First, consider the viscosity of the juice. Then, check whether the juice contains pulp and, if so, the size of the pulp particles.
2. Filling Method
Consider whether hot filling or aseptic cold filling is required based on the juice preservation requirements.
3. Expected Production Volume
Select the appropriate machine based on your expected production volume. A semi-automatic juice filling machine is recommended for low-volume production, while a fully automatic juice filling machine is recommended for high-volume production.
4. Cost
Cost is a crucial factor when purchasing a juice filling machine. If you are new to the industry, it is advisable to choose reasonably priced and compact equipment. Conversely, if your business is growing rapidly, you may consider investing more in high-end equipment.
FAQ about Juice Filling Machine
Q1: What is the filling volume?
A1: It can fill volumes ranging from 100ml to 1L or 500ml to 5L.
Q2: Does it support CIP cleaning?
A2:Certainly. We design and manufacture juice filling equipment based on the specific requirements of our customers.
Q3:What temperature can the filling machine withstand?
A3:The filling machine can withstand temperatures of up to 90°C.
Q4:Can it fill fruit juice containing pulp particles?
A4:Certainly. It can fill juice containing pulp particles up to 1 cm in size.
Q5:What materials come into contact with the product in the juice filling machine?
A5:The product-contact parts are made of 316 stainless steel, featuring 316 stainless steel anti-drip filling nozzles and food-grade PTFE hose.
Conclusion
In summary, the juice filling machine is an ideal packaging solution for achieving precise and efficient filling across a wide range of beverage products. It enables higher production output with reduced labor requirements, helping to lower operating costs for your business. If you are interested, please do not hesitate to contact Npack today to purchase a high-quality juice filling machine.
