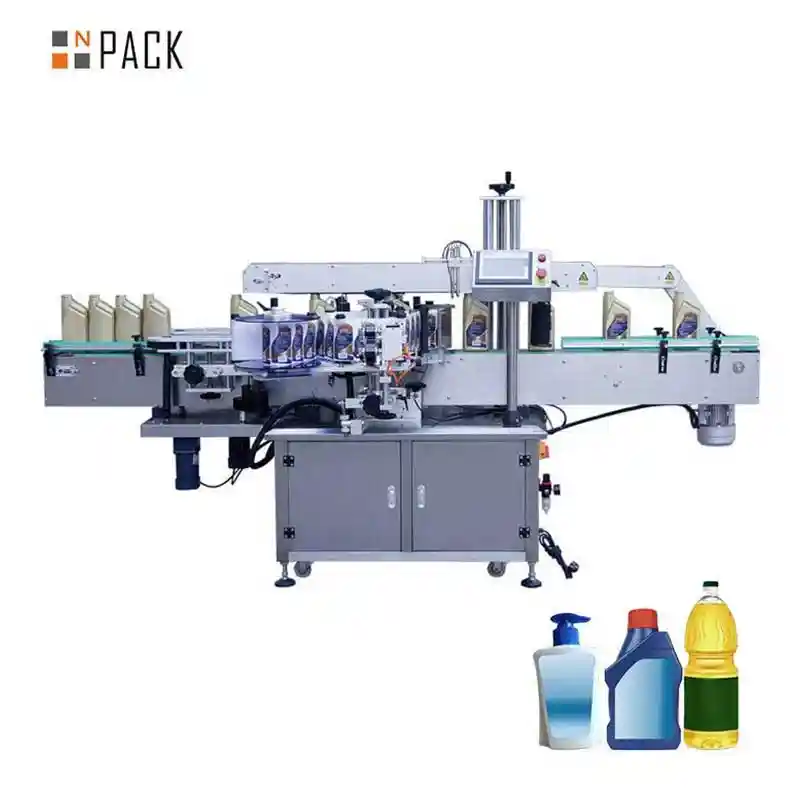

The Double Side Labeling Machine is designed for high-precision labeling of round, square, flat, or tapered bottles across industries including food, beverages, cosmetics, pharmaceuticals, and healthcare. Equipped with an advanced PLC control system and touch screen interface, it ensures easy operation, adjustable speed, and stable, consistent labeling.
Delivering ±1mm labeling accuracy and speeds of 60–80 bottles per minute, the machine guarantees reliable performance for self-adhesive labels, non-adhesive films, and barcodes. Photoelectric detection ensures precise label positioning on both sides of the bottle, while servo or stepping motor drives provide smooth, consistent operation.
Constructed from SUS304 stainless steel and high-quality aluminum alloy, it offers durability, hygiene, and long-term reliability. CE certification ensures compliance with EU safety standards, providing market access, while optional features such as adjustable bottle height, label size, and visual inspection enhance flexibility for diverse production needs.

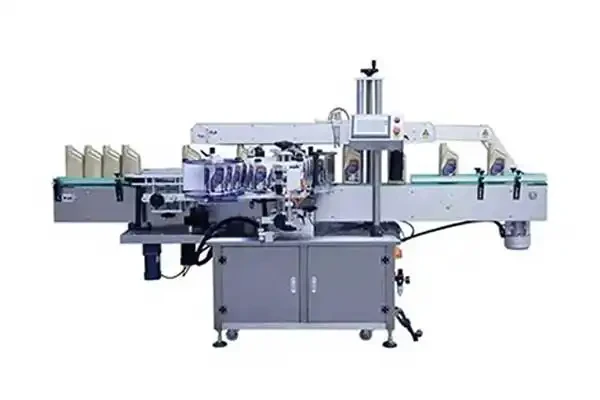

Double Side Labeling Machine Precision Meets Efficiency
1.Premium Construction & GMP Compliance
Crafted from high-grade 304/316 stainless steel, the machine ensures durability, corrosion resistance, and full compliance with GMP hygiene standards, making it suitable for food, cosmetics, and pharmaceutical industries.
2.Intelligent HMI and PLC Control System
Equipped with a Siemens color touchscreen HMI and PLC control, the system supports bilingual (Chinese-English) operation and customizable languages. It provides intuitive parameter settings, production data monitoring, and one-touch switching for different labeling tasks.
3.High-Precision Labeling Performance
Driven by Panasonic servo motors, the labeling heads ensure stable, accurate, and wrinkle-free label application. Automatic bottle separation and correction systems further enhance labeling consistency, even at high production speeds.
4.Flexible Adjustment for Various Bottle Types
The system allows for multi-directional adjustments—front/back, left/right, up/down, and tilt angles—making it adaptable to round, square, and flat bottles with quick and tool-free changeovers.
5.Smart Production Management
Features include automatic shutdown, production counting, energy-saving standby, and data storage for up to 50 labeling parameter sets. These intelligent functions simplify production management and improve operational efficiency.
6.Reliable & Stable Operation
Built on a modular and standardized frame, the machine integrates top-brand photoelectric sensors for label and product detection, ensuring precise operation, long-term durability, and continuous 24-hour performance.
7.Easy Maintenance & User Safety
The stainless-steel enclosure and aluminum alloy components offer easy cleaning, rust prevention, and operator safety. The design emphasizes hygiene, longevity, and simple upkeep — ideal for modern automated labeling lines.
Technical Parameters
| 1 | Labeling Speed | 60-350pcs/min (Depending on label length and bottle thickness) |
| 2 | Height of Object | 30-350mm |
| 3 | Thickness of Object | 20-120mm |
| 4 | Height of Label | 15-140mm |
| 5 | Length of Label | 25-300mm |
| 6 | Label Roller Inside Diameter | 76mm |
| 7 | Label Roller Outside Diameter | 420mm |
| 8 | Accuracy of Labeling | ±1mm |
| 9 | Power Supply | 220V 50/60HZ 3.5KW Single-phase |
| 10 | Gas Consumption of Printer | 5Kg/cm^2 |
| 11 | Size of Labeling Machine | 2800(L)×1650(W)×1500(H)mm |
| 12 | Weight of Labeling Machine | 450Kg |
Working Process of a Double Side Labeling Machine
The double side labeling machine uses high-precision sensors to detect container position in real time. The labeling speed is automatically synchronized with the conveyor through a stepper or servo motor, ensuring accurate label application on both sides.
An overhead hold-down conveyor stabilizes containers during labeling, while sponge rollers and brushing units firmly press labels onto the surface, removing air bubbles and ensuring strong adhesion. This process delivers stable, efficient, and precise double side labeling.
Optional Functions and Components of Double Side Labeller
To meet different production and traceability requirements, the labeller machine can be equipped with the following optional functions and components:
1. Hot Coding Machine
A hot coding system can be integrated to print production dates, expiration dates, and batch numbers. Coding and labeling are synchronized, improving overall production efficiency.
2. Inkjet Printer
The machine can be configured with mainstream inkjet printers available on the market. These printers apply codes at designated positions on the label and work seamlessly with the labeling system.
3. Sensor Upgrade for Transparent Labels
Standard sensors are unable to detect transparent labels. For such applications, a special photoelectric sensor can be installed to ensure accurate label detection.
4. Code Reader (Scanner)
A code reader can be added to read QR codes and barcodes, enabling product data collection and supporting traceability and product database management.
