In today’s competitive packaging industry, product quality and packaging integrity are critical to brand success. Screw capping machines help manufacturers ensure reliable sealing, improve production efficiency, and enhance overall packaging appearance for bottles and containers.
Screw capping machine is designed to handle a wide variety of cap types, including pump screw caps, trigger caps, flip-top caps, and other cap. These machines are widely used across industries such as food, sauces, chemicals, cosmetics, and personal care products. In this article, we will explore the definition, working principle, and different types of screw capping machines, helping you better understand how they can enhance your packaging process.
What is a Screw Cap?
Screw cap is a common type of bottle closure that achieves a tight seal by engaging its threaded design with the threads on the bottle neck. This creates a physical barrier that prevents liquid leakage and gas ingress, helping to extend the product’s shelf life. Screw caps are typically made of plastic or metal. Plastic screw caps are lightweight and cost-effective, while metal screw caps are more durable and suitable for high-temperature environments.
Types of Screw Caps
The most common types of screw caps on the market are plastic screw caps and metal screw caps. In addition to these two common types, there are various screw caps specifically designed for particular applications, including tamper-evident screw caps, child-resistant caps, trigger caps, sprayer caps, pump screw caps, flip-top caps, and push-pull caps
1.plastic screw caps
Plastic screw caps are commonly made from polypropylene (PP), polyethylene (PE), or polyethylene terephthalate (PET). They offer good pressure resistance and elasticity, are lightweight, cost-effective, and resistant to rust. However, they are more difficult to recycle. Plastic screw caps are widely used on bottles for mineral water, carbonated beverages, shampoo, edible oils, and other products, making them the mainstream choice for fast-moving consumer goods such as bottled water and soft drinks.

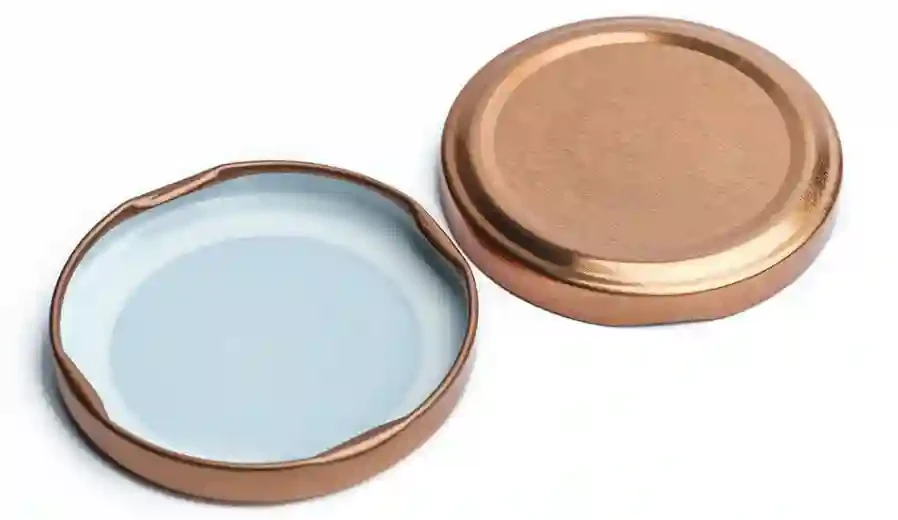

2.metal screw caps
Metal screw caps are typically made of aluminum or tinplate. They provide excellent sealing performance, strong resistance to oxygen and moisture, and effective leak prevention. They are recyclable and are commonly used on beer bottles, certain wine bottles, and glass jars for pickles and other preserved foods.
3.tamper-evident screw caps
tamper-evident screw cap is a type of closure that leaves an irreversible visual indication after it is opened for the first time. When the cap is first unscrewed, the bridges break and the tamper-evident ring remains on the bottle neck, clearly indicating that the package has been opened.

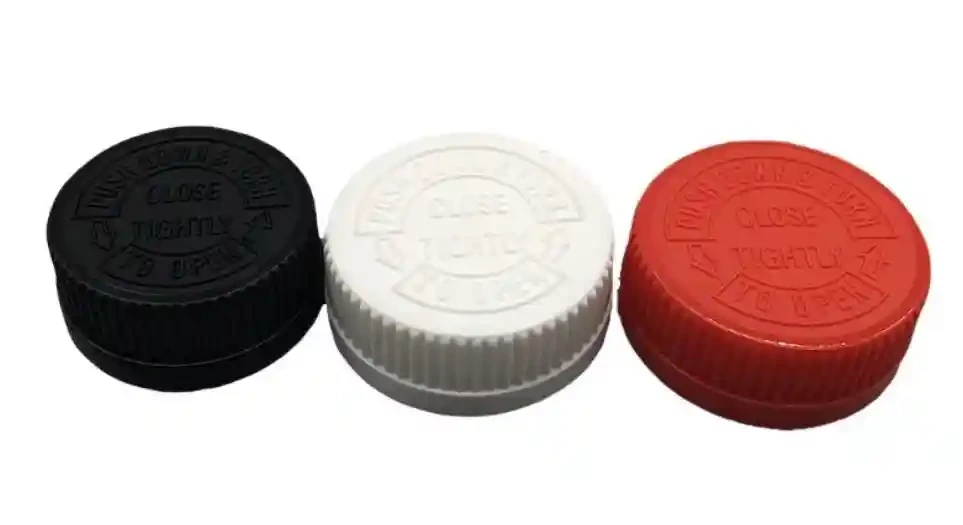

4.child-resistant caps
Child-resistant caps, also known as child safety caps, are commonly used in the pharmaceutical and healthcare industries. They require a combination of pressing and twisting to open, helping to prevent children from accidentally accessing medications, chemicals, and other potentially harmful substances.

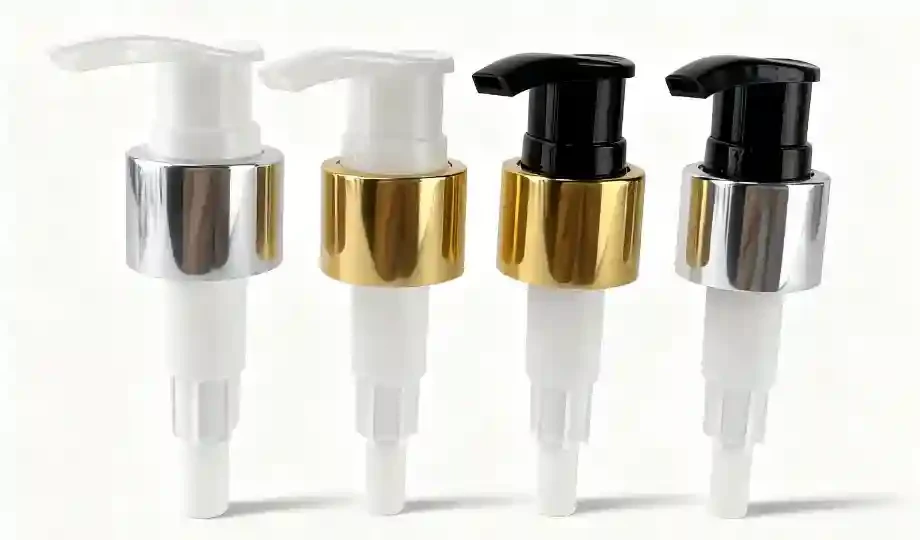

5.pump screw caps
pump screw cap combines a traditional screw cap with a liquid dispensing pump. It consists of a threaded base used for sealing and securing the closure to the container, and a pump head used for dispensing the liquid.

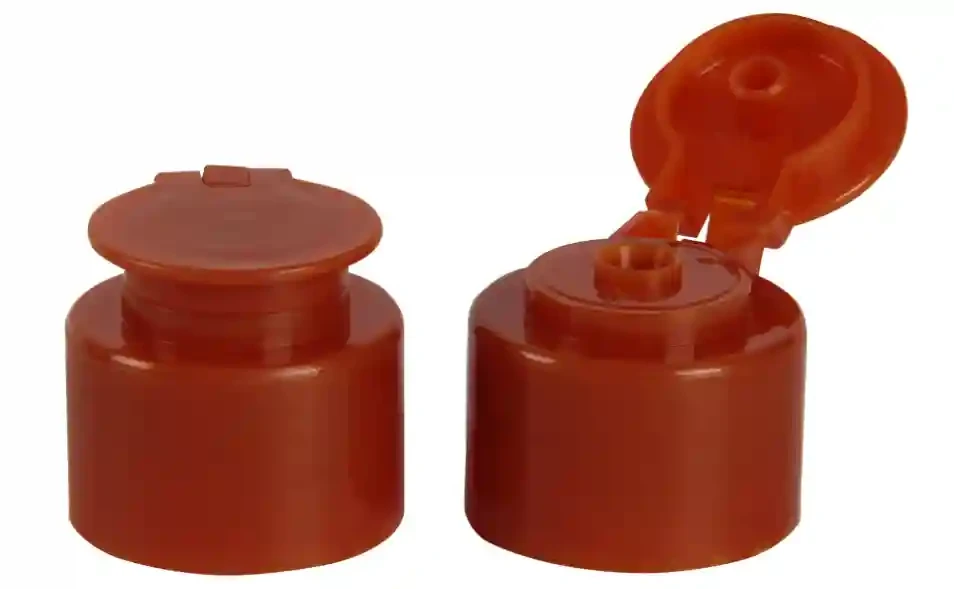

6.flip-top caps
flip-top cap is a structural packaging closure that combines both flip-top and screw cap functions. The top lid is connected to the base by a hinge, while the base is secured to the container through a threaded screw connection.
what is a screw capping machine?
screw capping machine tightens threaded caps onto bottles, jars, and various types of containers by applying precise rotational torque. It ensures reliable sealing of bottles, jars, and other containers, eliminates human variation, and maintains consistent and stable sealing quality.
Why use a screw capping machine?
1.Adjustable torque for precise capping and consistent sealing
The machine is driven by a motor, pneumatic system, or servo system, with adjustable torque. This prevents over-tightening or under-tightening during manual capping, protects the screw caps, ensures consistent sealing quality, and significantly improves production efficiency.
2.High flexibility, compatible with various bottle and cap types
The screw capping machine is capable of handling different bottle designs, cap sizes, and various sealing methods and accessory types, offering strong adaptability and flexibility.
3.Stable operation and easy operation
All parameters of the screw capping machine are set before shipment from the factory. During operation, workers only need simple adjustments, making it easy to use. The machine can basically achieve fully automatic operation, and when changing bottle types, only a few parameters need to be adjusted.
4.Easy integration and upgrade
The screw capping machine can be used as a standalone unit or integrated into bottle washing，filling, labeling production lines, meeting flexible production needs from small batches to large-scale manufacturing.
What are the main components of a screw capping machine?
1.Capping System
The capping system tightens threaded caps onto bottles, jars, and various types of containers by applying precise rotational torque. In a spindle capping machine, this is primarily achieved through three sets of spindle wheels that rotate the cap and tighten it onto the container. In a chuck capping machine, a chuck head is used to accurately grip and tighten the cap onto the container.
2.Cap Sorting and Feeding System
The cap sorting and feeding system mainly consists of a cap sorting unit and a cap feeding unit. Common cap sorting methods include cap elevators and vibratory bowl feeders, while cap feeding methods include 304 stainless steel guide rails and belt-type cap feeding systems.
3.Conveyor System
The conveyor system of a capping machine is primarily used to transport containers to the capping area and other sections of the machine. It is typically made of stainless steel or chain plate materials.
4.Bottle Gripping Device
The bottle gripping device holds the container securely in place during the capping process, preventing the bottle from rotating together with the cap. This ensures that the cap can be tightened properly while minimizing bottle movement and preventing damage to the container.
5.Stainless Steel Frame
The screw capping machine is built with a durable stainless steel frame, ensuring stable operation, corrosion resistance, and long-term reliability in industrial production environments.
What Are the Different Types of Screw Capping Machines?
There are various types of capping machines available on the market to accommodate different cap types and production requirements. Common types include:
1.Six Wheels Spindle Capping Machine
Six-wheel spindle capping machines use six capping wheels to tighten caps simultaneously. They are suitable for threaded screw caps, metal caps, flip-top caps, and similar closure types. They offer high stability and fast operating speeds, making them ideal for medium- to high-volume production.
2. 4 Wheels Capping Machine
Four-wheel spindle capping machines use four capping wheels to tighten caps simultaneously. They are suitable for pump caps, sprayer caps, screw caps, and similar closure types. The equipment has a lower cost and is suitable for small to medium production volumes.
3.Vacuum Capping Machine
Vacuum capping machines are mainly suitable for tinplate /metal caps and are commonly used for glass jars containing canned foods, sauces, and other products that require a vacuum-sealed environment.
4.Rotary Capping Machine
Rotary capping machines rotate bottles on a turntable while fixed capping heads perform the capping operation. They operate at high speed and are suitable for high-volume production.
5.Pick and Place Capping Machine
Pick and place capping machines use a mechanical handling system to pick up caps, place them onto bottle openings, and tighten them securely. They are particularly suitable for irregularly shaped bottles
6.Tracking Capping Machine
The main feature of a tracking capping machine is that the capping head moves synchronously with the bottle. Bottles do not need to stop during the capping process, preventing liquid from spilling and enabling continuous capping operations. It is compatible with a wide range of bottle shapes and is especially suitable for irregularly shaped bottles.
Screw Capping Machine Case Study — Sauce Squeeze Bottle Tracking Capping Machine
Filling Product: Tomato Sauce, Mayonnaise
Cap Type: Pointed Mouth Screw Cap
Bottle Type: Sauce Squeeze Bottle
Capping Solution: Npack customized a 2-head tracking capper machine for this Polish customer based on their tomato sauce and mayonnaise products and the matching pointed mouth screw caps used on squeeze bottles. The solution effectively solved the challenge of capping pointed mouth screw caps and significantly improved the customer’s production efficiency.
How to Choose the Right Capping Machine?
Choosing the right capping machine is critical to product quality, long-term cost control, and brand reputation. Before making a decision, consider the following key factors:
Production Requirements
Evaluate your production speed, container specifications, cap types, and output requirements.
Cap Compatibility
Ensure that the capping machine can accurately handle your specific cap and container types and complete the capping process reliably.
Speed and Torque Control
Stable capping speed and precise torque control are key factors affecting seal integrity and directly impact product quality and brand image.
Flexibility
If your production line needs to handle multiple bottle and cap types, choose equipment with quick changeover and easy adjustment features to improve production efficiency and reduce downtime.
FAQ About Screw Capping Machine
What types of caps is the screw capping machine suitable for?
The screw capping machine is suitable for sprayer caps, pump caps, metal caps, flip-top caps, pointed-tip screw caps, and more.
What industries commonly use bottle capping machines?
- Bottle capping machines are widely used in:Food and Beverage Industry
- Pharmaceutical Industry
- Cosmetics and Personal Care Industry
- Chemical and Agrochemical Industry
Any industry that needs secure bottle sealing can benefit from automated cap sealing equipment.
How often should capping machinery be maintained?
Screw Capping machines require regular maintenance to extend their service life, including checking air pressure, verifying torque settings, cleaning, and adding lubricant, among other routine tasks.
Conclusion
Screw Capping machines are essential equipment in packaging production lines. They effectively solve issues of inaccurate capping, improve production efficiency and return on investment, and ensure product quality. Therefore, selecting the right capping machine has a significant impact on business development. It is hoped that this article can help you find suitable screw capping machine solutions and suppliers.
