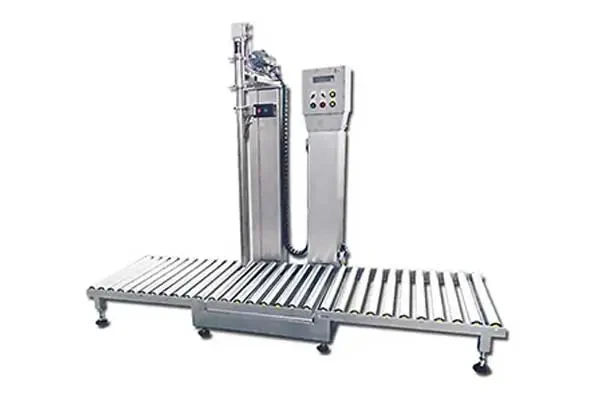

The Explosion Proof Liquid Weight Filling Machine is specially designed for safely and precisely filling flammable or volatile liquid products. Built with an anti-explosion electrical system, it ensures secure operation in hazardous environments while maintaining exceptional filling accuracy.
This above-surface filling system allows the operator to easily position the drum under the filling nozzle. Once the start button is pressed, the machine automatically tares the weight and performs a two-speed filling process—fast for bulk flow and slow for precision. Upon completion, the filling valve automatically retracts, and a drip collection system prevents product leakage, ensuring a clean and efficient workflow.
Ideal for chemical, petrochemical, coating, and solvent industries, this explosion proof liquid weight filling machine offers a combination of safety, reliability, and high-speed performance, making it an essential solution for modern hazardous-area liquid packaging.
Explosion Proof Weight Filling Machines Features
1. Advanced Explosion-Proof Control System
Built with explosion-proof protection, this weight filling system is designed for safe operation in hazardous environments. Every electrical component meets strict explosion-proof standards, ensuring reliability and operator safety in volatile conditions.
2.High-Speed & High-Precision Weighing
The system features a 200 times/sec A/D conversion rate and an internal resolution of 1/1,000,000, providing rapid and ultra-precise weighing feedback. Combined with a 1/60,000 display resolution, it guarantees accuracy even in dynamic industrial environments.
3.Intelligent Dual-Display Interface
Equipped with a dual-display panel, the system simultaneously shows real-time weight, target fill, and operational data. The LED screen with status indicators gives operators clear visibility for efficient monitoring and control.
4.Smart Filling Control & Anti-Vibration Software
The explosion proof liquid weight filling controller incorporates dynamic and static anti-tremble algorithms, along with refined feeding and pre-compensation modes. These ensure stable operation, even under vibration or pressure fluctuation.
5.Multi-Stage Filling Accuracy Optimization
The system uses slow feeding with frequency and amplitude correction, improving filling precision and minimizing product loss. The automatic tare removal function ensures consistent accuracy across multiple batches.
6.Data Management & Traceability
Capable of storing up to 30 preset filling recipes, the system supports auto printing, batch accumulation printing, and formula printing. Operators can easily recall settings, track performance, and maintain production traceability.
Technical Parameters
| 1 | Max capacity | 300kg |
| 2 | Min division | 0.1kg |
| 3 | Filling Accuracy | ±0.1% |
| 4 | Filling Speed | about 40~60 Drum/hr(based on the feeding speed) |
| 5 | Explosion Proof Grade | ExdiaIIbT4(only for explosion-proof type) |
| 6 | Waterproof grade | IP65 |
| 7 | Power | AC220/50Hz(supplied by customer) |
| 8 | Air supply | 0.4-0.6Mpa(supplied by customer) |
| 9 | Temperature | -10℃- 40℃ |
| 10 | Control mode | 2-shift control |
| 11 | Filling mode | Inserting filling, above-surface filling |
| 12 | Platform | 700×700mm. |
| 13 | Empty drum platform | 700mm×1000mm. |
| 14 | Storage platform | 700mm×1000mm. |
| 15 | filling valve pipe | SUS304 stainless steel and Teflon(SUS 316L is optional) |
Core Components of an Explosion-Proof Liquid Weight Filling Machine
An Explosion Proof Liquid Weight Filling Machine is built around four essential modules that work together in hazardous environments to ensure safe, stable, and highly accurate liquid filling.
Core Components:
Explosion-Proof Control Center
A flameproof control cabinet integrating a PLC and touchscreen HMI, providing centralized control while ensuring full compliance with explosion-proof safety requirements.
High-Precision Weighing and Sensing Unit
Explosion-proof load cells and a reinforced weighing platform deliver real-time, high-accuracy weight measurement for precise liquid filling control.
Explosion-Proof Filling and Actuation System
Filling nozzles driven by explosion-proof pneumatic or servo systems, combined with a stable conveyor system to ensure smooth, controlled filling operations.
Comprehensive Safety Protection System
A fully explosion-proof machine structure, integrated static electricity elimination devices, and emergency stop functions to maximize operational safety in flammable or explosive environments.
Operation Process of Explosion-Proof Liquid Weight Filling Machine
After power-on, the operator places the barrel on the weighing platform and presses the [START] button. The system automatically performs tare deduction, then opens the filling nozzle and ball valve to begin filling. A three-stage flow control (large, medium, small) ensures safe and accurate filling of flammable liquids. When the target weight is reached, filling stops and the nozzle lifts up, completing the explosion-proof filling process.
