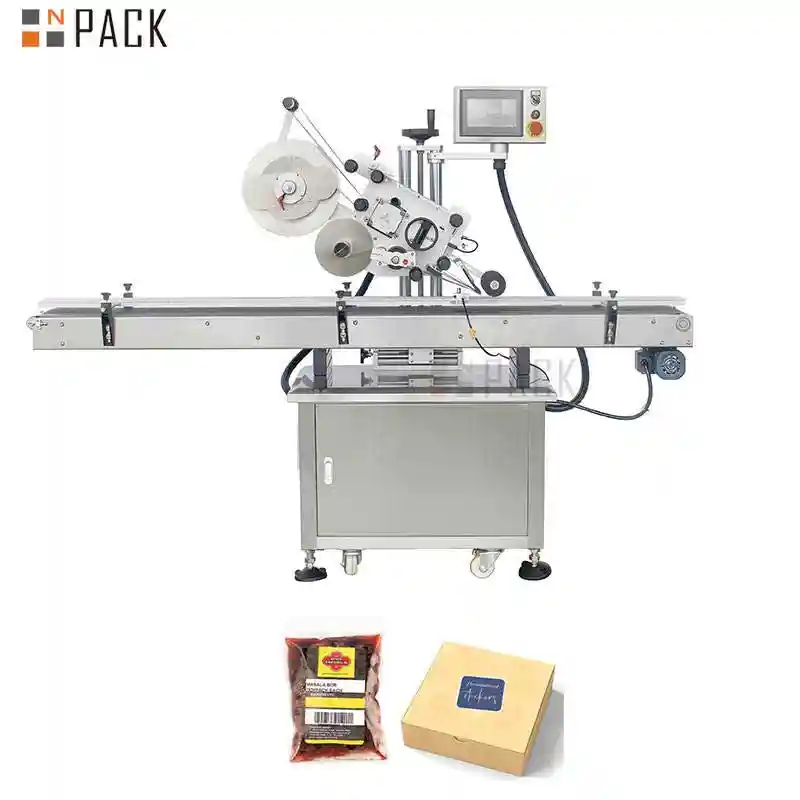

The Flat Labeling Machine is designed for high-speed, precise labeling of flat surfaces on products like books, boxes, cartons, cards, and pouches across food, pharmaceutical, printing, and packaging industries. Equipped with a stepper or servo motor and advanced optical sensors, it ensures ±1mm labeling accuracy with consistent results.
Automatic operation, durable stainless steel construction, and adjustable mechanisms provide stability, corrosion resistance, and long-term reliability. Optional inkjet or printer integration enables printing of production dates, batch numbers, barcodes, and other information directly on labels. CE certification ensures compliance with EU safety standards, offering market access and confidence. Its intuitive HMI interface allows easy operation, seamless adjustment, and continuous 24/7 production, maximizing efficiency and reducing errors
Flat Surface Labeller Mahine Main Feaure
1.Accurate and Consistent Labeling
Equipped with Panasonic or Siemens servo motors and advanced PLC control, this machine guarantees accurate label placement without wrinkles or bubbles. The synchronization of labeling and conveyor speed ensures smooth, steady performance during operation.
2.Wide Adaptability
Designed to handle a variety of product shapes and sizes, it supports top and bottom labeling applications. The adjustable label height and angle make it easy to adapt to different labeling positions and requirements.
3.User-Friendly Control System
Featuring a Siemens color touch screen interface, operators can easily adjust labeling parameters, monitor production, and store multiple labeling recipes for different products. Language options can be customized to meet global production needs.
4.Sturdy and Hygienic Design
Constructed from premium 304/316 stainless steel , the machine is rustproof, easy to clean, and compliant with GMP manufacturing standards, ensuring safety and hygiene in production.
5.Efficient and Reliable Operation
Integrated sensors provide automatic label detection, preventing mislabeling and reducing waste. The system also includes automatic shutdown, label counting, and alarm functions to improve productivity and operational safety.
6.Easy Integration and Maintenance
The labeling machine can be connected to existing filling or packaging lines, allowing seamless automation. With a modular structure, it supports quick disassembly for cleaning and maintenance, ensuring long-term durability and ease of use.
Technical Parameters
| 1 | Machine Size | 1600(L)×1000(W)×1250(H)mm |
| 2 | Output Speed | 20-100pcs/min depends on label and bottle size |
| 3 | Height Label Object | 30-280mm |
| 4 | Bag size | max L60cm; max W 40cm; max H10cm |
| 5 | Label Height | 15-140mm |
| 6 | Label Length | 25-300mm |
| 7 | Pastes the sign precision | ±1mm |
| 8 | Roll inside | 76mm |
| 9 | Roll Outside Diameter | 300mm |
| 10 | Power Supply | 220V 0.8KW 50/60HZ |
| 11 | Power Supply | 2800(L)×1650(W)×1500(H)mm |
| 12 | Weight of Labeling Machine | 450Kg |
Flat Labeling Machine Application
This flat labeling machine supports a wide range of bag types, including flat bags, stand-up pouches, four-side and eight-side sealed bags, as well as shopping bags with or without handles. The standard bag width ranges from 25 mm to 300 mm and can be customized.
It is compatible with multiple materials such as PE, PP, PET, LDPE paper bags, Mylar, OPP, aluminum foil laminated films, and cardboard-based bags. Transparent bags and special-shaped bags can also be labeled accurately.
With adjustable mechanisms, the machine handles gusseted, resealable, and irregular bags while maintaining high accuracy, achieving speeds of up to 100 pcs/min depending on bag size and material.
How a Flat Labeling Machine Works?
A flat labeling machine is designed for efficient and flexible labeling of flat or semi-flat products. The user-friendly control system allows operators to easily set and save parameters such as label size, speed, and position for fast product changeovers.
High-friction conveyor belts ensure smooth and stable product transport, keeping items properly aligned during labeling to achieve accurate and consistent label placement.
Depending on application needs, the machine can apply labels to the top, bottom, or both surfaces, making it suitable for flat bags, pouches, cartons, containers, and other flat items used across various industries.
Do Flat labeling Machines Come with Features Like Date Code Printers or RFID Tagging Capabilities?
Includes a coding machine for printing date information on labels.
This automatic label applicator works seamlessly with a variety of packaging types, from Mylar pouches to plastic bags and even cardboard hang tags. Whether you need to label plastic bags, RFID tags, or paper cards, the integrated design ensures accurate placement and crisp date codes for each application.
