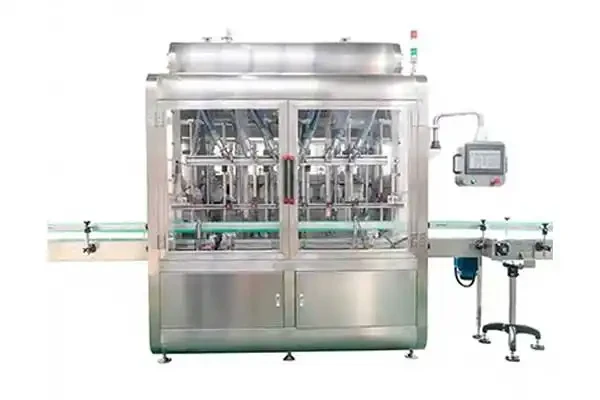

The Rotary Lobe Pump Filling Machine（Rotor Pump Filling Machine） offers an advanced and reliable solution for filling high-viscosity or particle-containing liquids, such as creams, lotions, sauces, honey, and gels. Using a high-precision stainless steel lobe pump driven by servo motors, it achieves exceptional filling accuracy of ±0.5%, ensuring smooth, consistent, and bubble-free performance.
Made of 304/316L stainless steel, the machine meets CE standards for hygiene and safety. Its PLC control system with a touch screen interface allows quick parameter adjustment for filling volume, speed, and nozzle height. The servo-driven lifting nozzle enables clean filling for both foamy and thick materials, while anti-drip nozzles and automatic bottle detection enhance production efficiency.
With 2–20 customizable filling heads and a wide range of 10–5000ml, this machine is ideal for food, cosmetics, chemical, and pharmaceutical industries. Combining precision, durability, and easy operation, the Rotary Lobe Pump Filling Machine delivers high performance and flexibility for modern production lines.
Rotor Pump Filling Machine Main Features
1.Durable Stainless Steel Construction
Constructed from 304 stainless steel, with optional 316SS for product-contact parts to meet strict hygiene standards and ensure long-lasting durability.

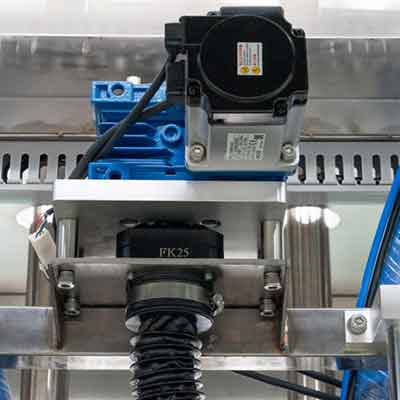

2.High-Precision Lobe Pump System
Servo-driven lobe pumps provide accurate and consistent filling from 100–5,000ml. Each nozzle operates independently for precise output and reliable production.
3.Wide Bottle Compatibility & Fast Changeover
Compatible with bottles of various sizes and shapes. Quick, tool-free adjustments allow seamless switching between products without repositioning cylinders or nozzles.
4.Smart PLC & Touchscreen Control
Intuitive touchscreen interface simplifies operation. Features like “No bottle, no fill” and fast parameter adjustments improve efficiency and reduce errors.
5.Easy Cleaning & Optional CIP
Quick-install clamps allow tool-free disassembly. Automatic cleaning is available via touchscreen, and CIP connection is optional for enhanced sanitation.
Technical Parameters
| 1 | Filling Volume | 500ml-1000ml |
| 2 | Machine Construction Material | 304SS |
| 3 | Voltage | 220V ,50HZ, 1Phase (can be customer made) |
| 4 | Power | 3.5 KW |
| 5 | Air Pressure | 0.6MPa-0.8MPa |
| 6 | Accuracy | ≤±0.5% |
